Measurement Types and Ranges:

•Resistors: 1m ohm to 40M ohm
•Low Resistors Kelvin: 10m ohm to 100 ohm
•Capacitor: 10pF to 400mF
•Inductor: 10uH to 400H
•Zener Diodes: 0.05V to 100V
•Diodes, Transistors and Transistors containing Resistors
•Opto Couplers: ON/OFF Test
•Relays: ON/OFF Test Max. 24V up to 50ma
•Voltage Measurement: 0-(+/-40V)

Programmable Tolerance Limits +999% to -100% or absolute value
Average Measurement Speed: 90ms/step and 50ms/step (tandem measurement}

Guarding
•Auto Guard Using ATG
•2 points/step

Mechanical Specifications

•Minimum Positioning Resolution: 10um (0.4 mils)
•Positioning Repeatability: +/- 50um (+/-2mils)
•Minimum Test Pad Diameter: 250um (10 mils)
•Minimum Probing Pitch: 0.2mm (8mils)
•Probing Angle All Probes: 6 degrees
•Probe Return Stroke: 6mm to 30mm (.23 to 1.18 inches)
•Probe Force: 80 grams to 210 grams (2,8 Ounces to 7.4 Ounces)
•Probe Travel: Programmable 0mm to 3mm
•PCB Thickness: 0.8mm to 3.2mm (0.03 to 0.125 inches)
•PCB Edge Clearance: 3.17mm (0.125 inches)
•PCB Maximum Dimension: 600mm x 500mm (23.6 x 19.7 inches)
•Maximum Allowable Component Height Probe side: 30mm (1.18 inches)
•Maximum Allowable Component height Bottom Side: 100mm (3.94 inches)

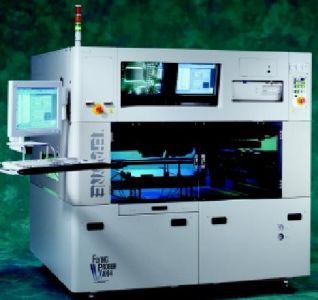

Flying Probe
